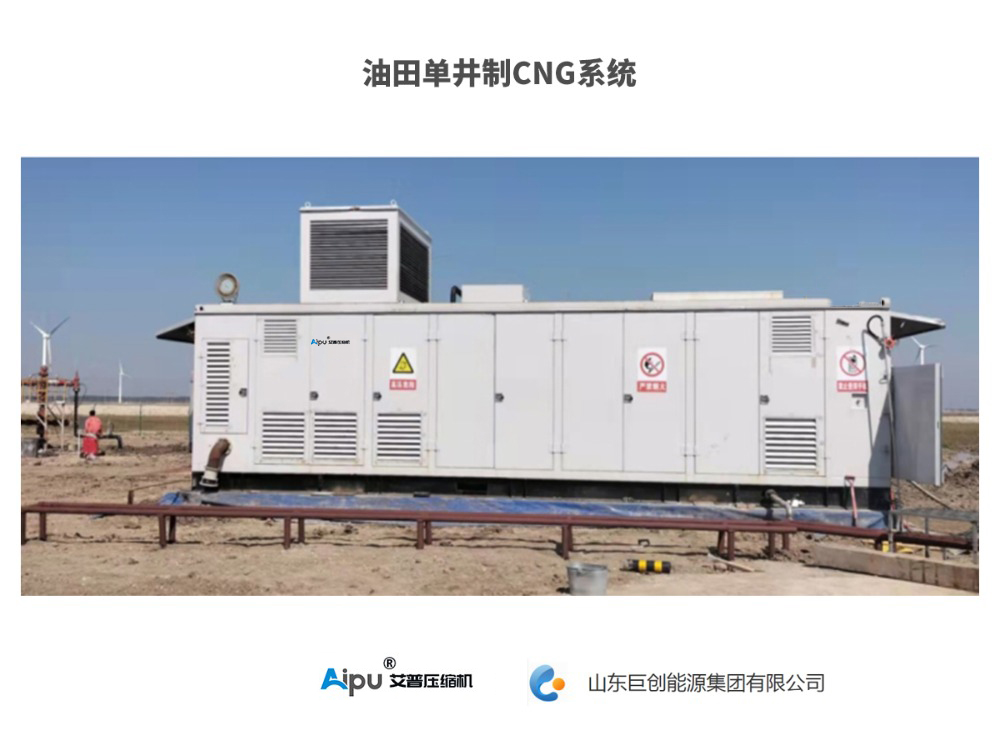

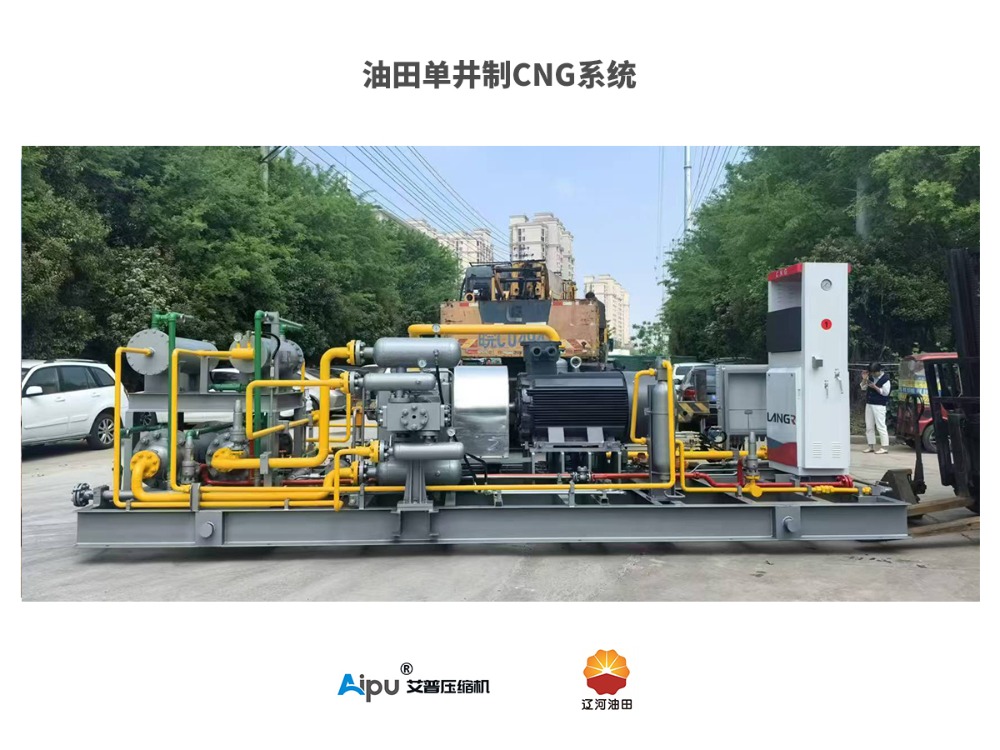

Integrated system for CNG production from single well recovery in oil field
Integrated system for CNG production from single well recovery in oil field
■ Applicable Overall skid-mounted integrated system for CNG recovery and utilization at a single wellhead in the oilfield.■ Features Customized as required Integrated skid-mounted
No need for foundation, economical installation
Perfect automatic control, safe and reliable
|
Equipment Parameters
|
Treatment capacity
Nm3/D
|
Inlet pressure
（Mpa)
|
Exhaust pressure
（Mpa)
|
Motor power
KW
|
Overall dimensions
（mm)
|
|
VW-0.32/(30-200)-250 |
10000-50000 |
3.0-20 |
25 |
90 |
10000*2500*3000 |
|
DW-1.26/(10-30)-250 |
16000-45000 |
1.0-3.0 |
25 |
250 |
10000*3000*3000 |
|
DW-2.26/(5-10)-250 |
15000-30000 |
0.5-1.0 |
25 |
250 |
10000*3000*3000 |
|
DW-3.36/(2-5)-250 |
12000-25000 |
0.2-0.5 |
25 |
250 |
10000*3000*3000 |
