Chemical process compressor
■ Applicable The series of compressors for chemical process are used to compress and transport single or mixed medium gas in the petrochemical process flow, and provide the required pressure to the reaction unit.
■ Features Specific process design and manufacturing
Perfect self-control and economical operation and maintenance
|
Equipment Parameters
|
medium |
Processing capacity Nm3/h |
intake pressure（Mpa) |
Exhaust pressure（Mpa) |
Motor power
KW |
External dimensions（mm) |
|
ZW-2.0/2.5 |
cyclohexane |
105 |
Atmospheric pressure |
0.3 |
11 |
2000*1500*1700 |
|
ZW-3.5/0.5-16 |
freon |
275 |
0.05 |
1.6 |
45 |
2000*1500*1700 |
|
ZW-0.5/0.5-4 |
isobutylene |
40 |
0.05 |
0.4 |
4 |
2000*1500*1700 |
|
DW-1.3/3.5-55 |
mixture |
305 |
0.35 |
5.5 |
55 |
4500*2700*2600 |
|

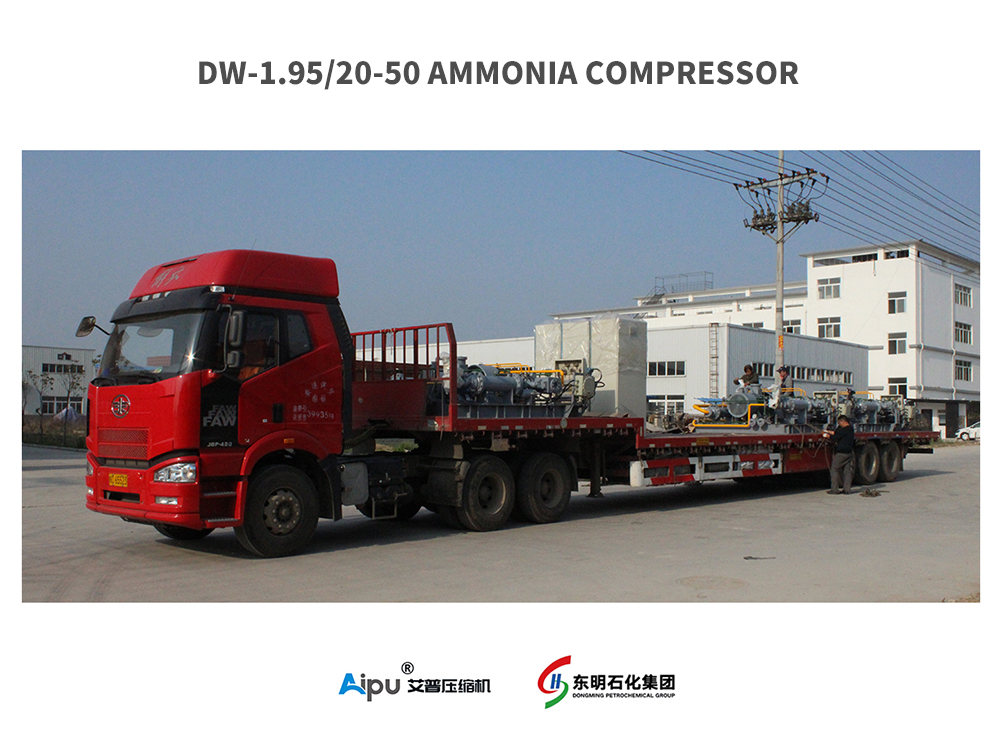

DW-1.95/20-50 |
ammonia |
2100 |
2 |
5 |
132 |
4500*2700*2600 |
|
DW-5.7/0.03-12 |
Carbon 4 |
305 |
0 |
1.2 |
55 |
4500*2700*2600 |
|
DW-0.65/(4-8)-45 |
ethylene |
235 |
0.4-0.8 |
4.5 |
37 |
4500*2700*2600 |
|
DW-0.65/(3-4)-36 |
flash gas |
150 |
0.3-0.4 |
3.6 |
30 |
4500*2700*2600 |
|
DW-7.8/(0.8-1.2)-16 |
mixture |
805 |
0.08-0.12 |
1.6 |
132 |
4500*2700*2600 |
|
DW-16.6/(0.05-0.1)-5 |
biogas |
920 |
0.005-0.01 |
0.5 |
110 |
4500*2700*2600 |
|
ZW-0.26/40-45 |
regeneration gas |
550 |
4 |
4.5 |
5.5 |
2000*1500*1700 |
|
ZW-0.25/20-30 |
carbon monoxide |
275 |
2 |
3 |
7.5 |
2000*1500*1700 |
|
DW-10/1 |
exhaust |
520 |
Atmospheric pressure |
0.1 |
30 |
3500*2700*3000 |
|
DW-3/1-6 |
nitrogen |
310 |
0.1 |
0.6 |
30 |
3500*2700*3000 |
|
DW-11/3.5 |
flash gas |
570 |
Atmospheric pressure |
0.4 |
75 |
3500*2700*3000 |
|
DW-10/0.1-3 |
recycle gas |
570 |
0.01 |
0.3 |
55 |
4500*2700*2600 |
|
DW-2.5/(0.01-5）-8 |
propylene |
450 |
0.001-0.5 |
0.8 |
22 |
4500*2700*2600 |
|
DW-10/(0.5-3)-3.5 |
associated gas |
1420 |
0.05-0.3 |
0.4 |
75 |
4500*2700*2600 |
|
MW-6.1/(8-10)-52 |
Feed gas |
3150 |
0.8-1.0 |
5.2 |
400 |
7500*2700*2600 |
