Low temperature compressor
■ Applicable Low temperature series compressors are mainly used in the pressurization, transportation and recovery of low temperature gases from -30°C to -160°C.
■ 特点 High-tech products in Anhui Province
The first set of major technical equipment in Anhui Province
■ Product Overview The low temperature compressor was first applied to the recovery of low temperature BOG for LNG tank ships, and its general inlet temperature is -80°C to -160°C. Low temperature materials suitable for -80°C to -160°C are limited. In view of the particularity and market demand for low temperature compressors, AIP started the development work in June 2014. After 16 months of research and development, on October 6, 2015, the low temperature BOG compressor was tested for six consecutive days under simulated working conditions with low gas load. The experimental process is all in accordance with the requirements of actual technological conditions, the inlet temperature of the compressor reaches the design temperature of -160°C, and the operating parameters completely meet the design requirements. The feasibility and rationality of the design, material selection and process of low temperature BOG compressor are fully proved.
|
Equipment Parameters
|
Medium
|
Temperature |
Treatment capacity
Nm3/h
|
Inlet pressure
（Mpa)
|
Exhaust pressure
（Mpa)
|
Motor power
KW
|
|

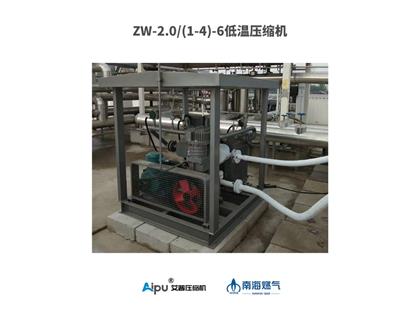

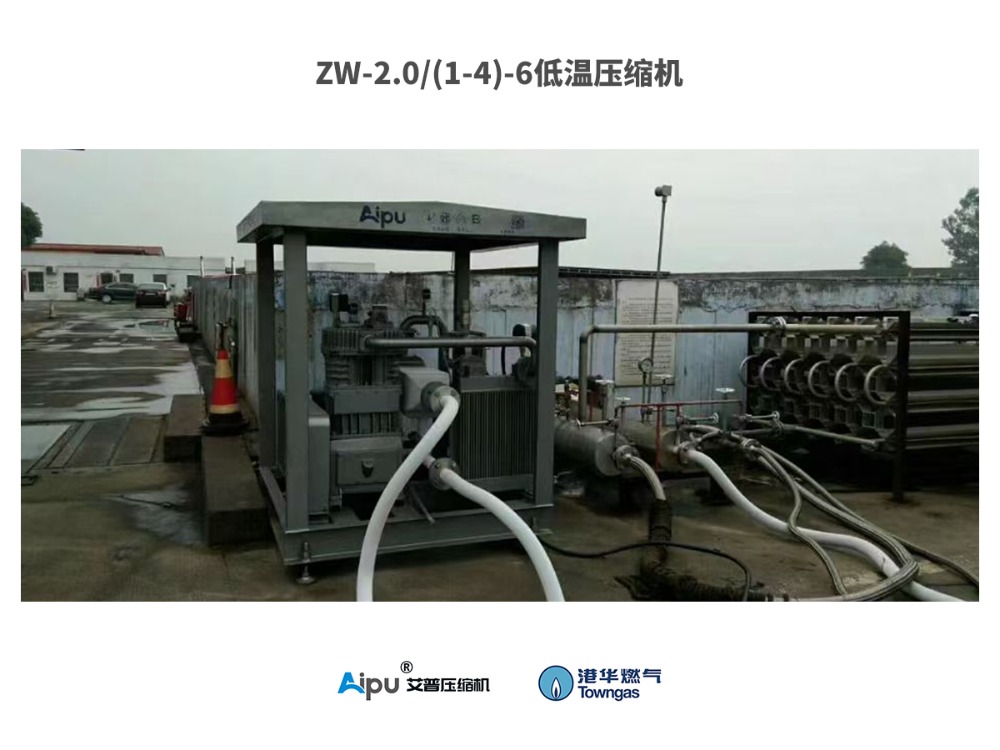

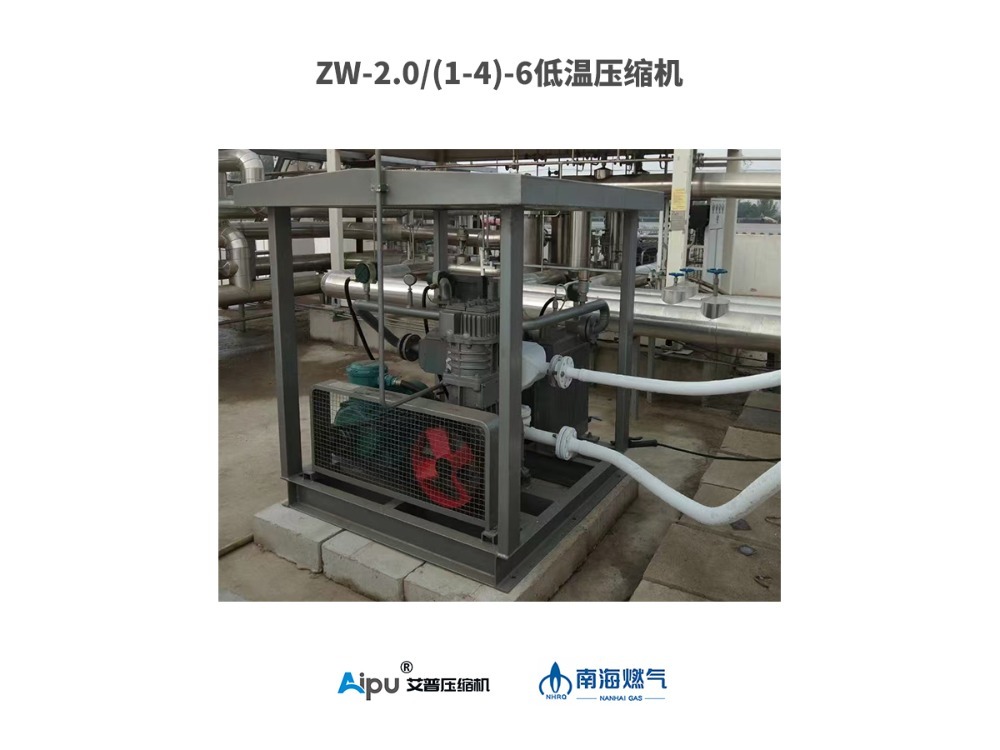

ZW-2.0/(1-4)-6 |
Low temperatureBOG
|
-120 |
400 |
0.1-0.4 |
0.6 |
22 |
|
ZW-4.0/(1-4)-5.5 |
Low temperatureBOG |
-120 |
720 |
0.1-0.4 |
0.55 |
37 |
|

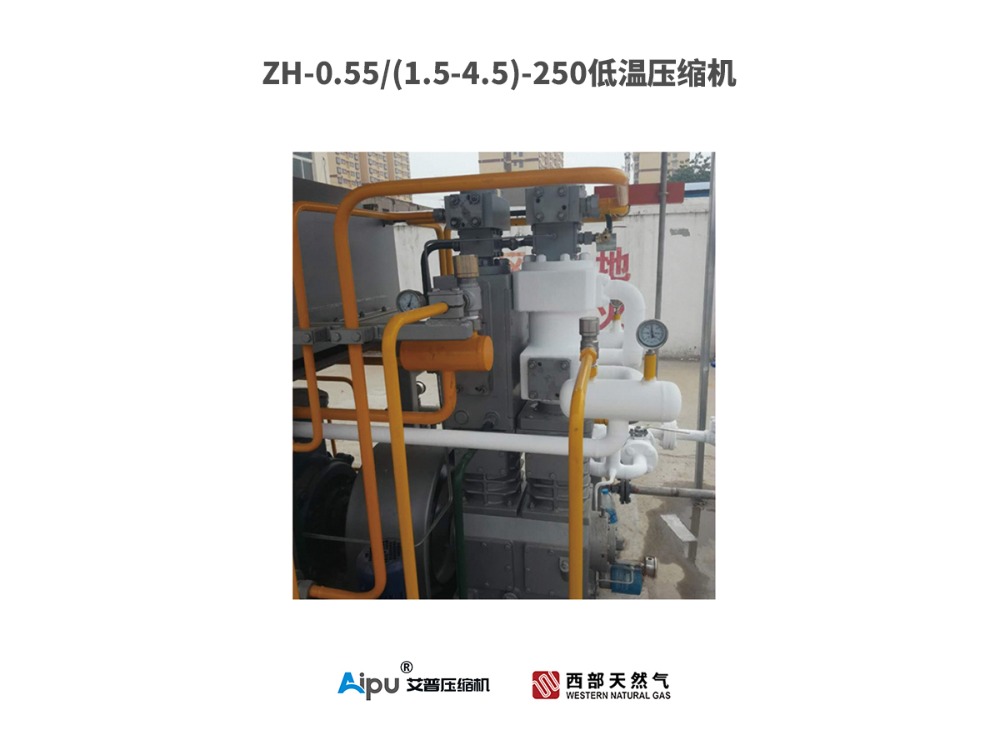

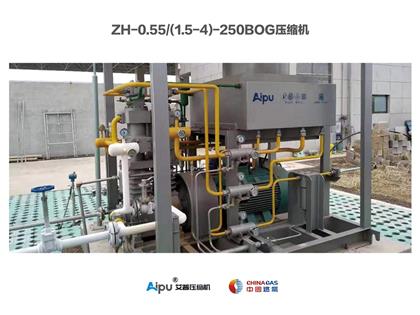

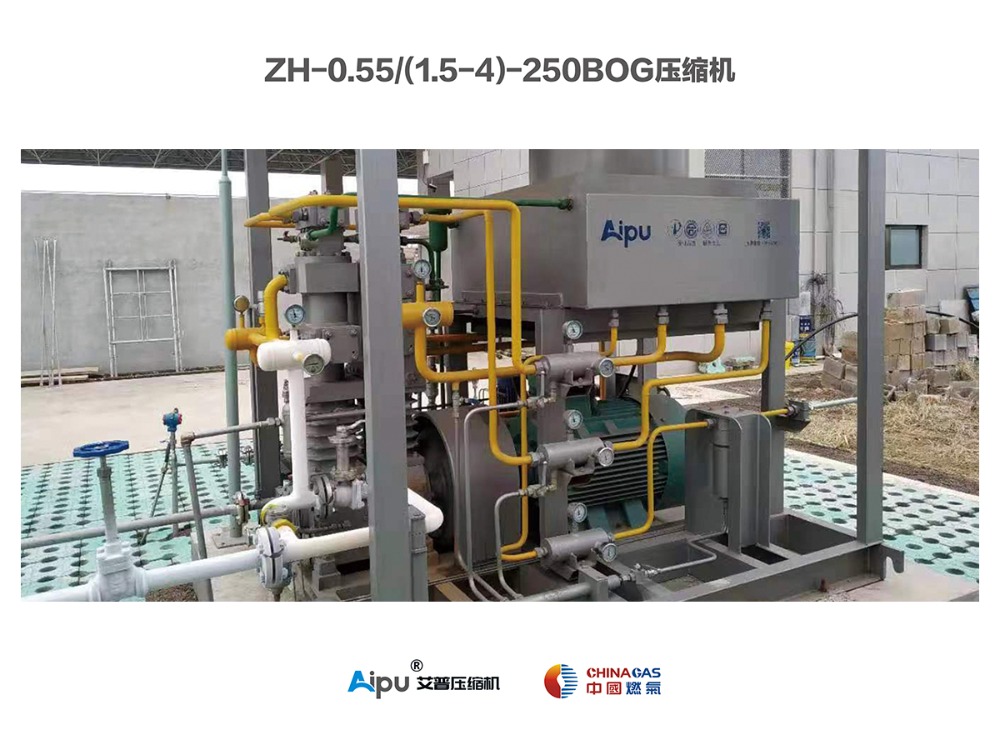

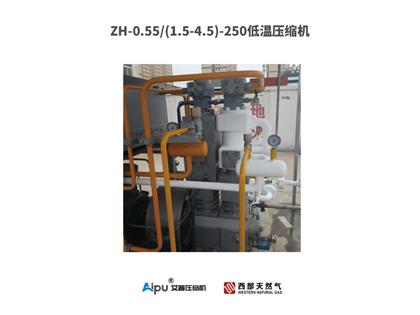

ZH-0.55/(1.5-4.5)-250 |
Low temperatureBOG |
-120 |
150 |
0.15-0.45 |
25 |
37 |
|
VH-0.85/(1.5-4.5)-250 |
Low temperatureBOG |
-120 |
230 |
0.15-0.45 |
25.00 |
75 |
|
ZW-1.0/1-10 |
Low temperature ethylene
|
-100 |
105 |
0.1 |
1 |
15 |
|
DW-2.6/(4-6)-26 |
Low temperature ethylene
|
-100 |
805 |
0.4-0.6 |
2.60 |
90 |
|
|
