CNG from BOG recovery
■ Applicable L-CNG filling station
LNG storage tank overpressure release BOG recovery.
Recovery of residual pressure BOG of LNG tanker after unloading.
The first set of major technical equipment in Anhui Province
Equipment in Recommended Catalogue of Energy Conservation and Environmental Protection in Anhui Province
|
Equipment Parameters
|
Treatment capacity
|
Inlet pressure （Mpa)
|
Exhaust pressure （Mpa)
|
Motor power KW
|
Overall dimensions （mm)
|
|
|
Room temperature BOG
|
Low temperature BOG
|
|||||
|
ZW-0.15/(8-10）-220 |
50 |
60 |
0.8-1.0 |
22 |
22 |
1500*1500*1700 |
|
ZH-0.45/(1.5-4.5)-250 |
100 |
120 |
0.15-0.45 |
25 |
30 |
2200*2000*2000 |
|

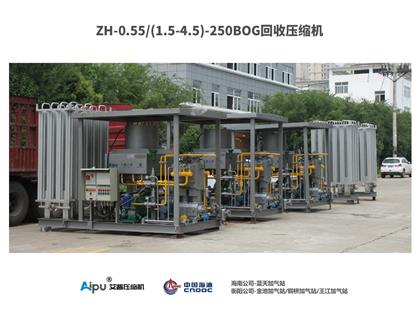

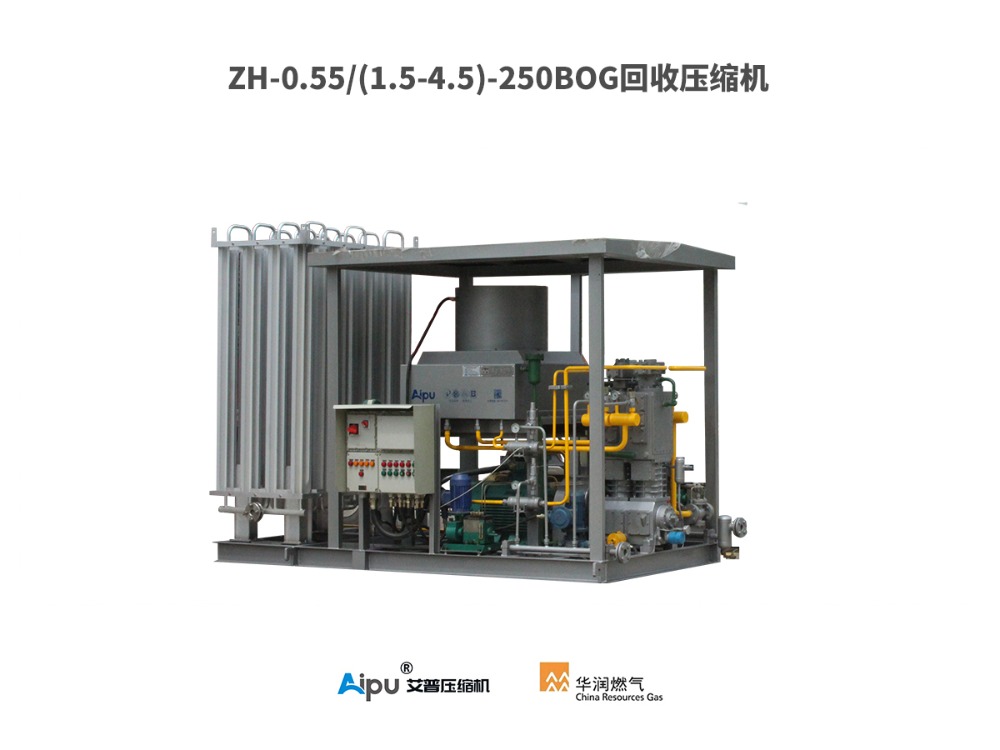

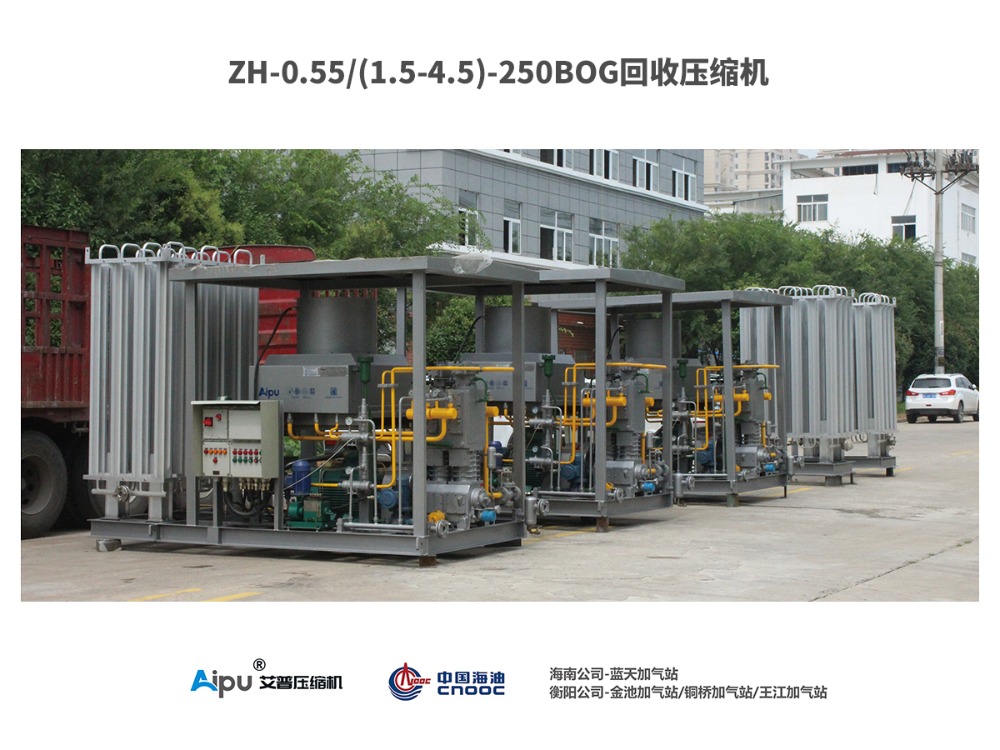

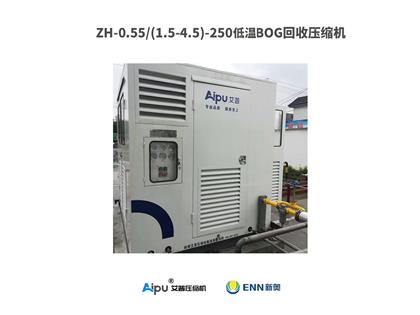

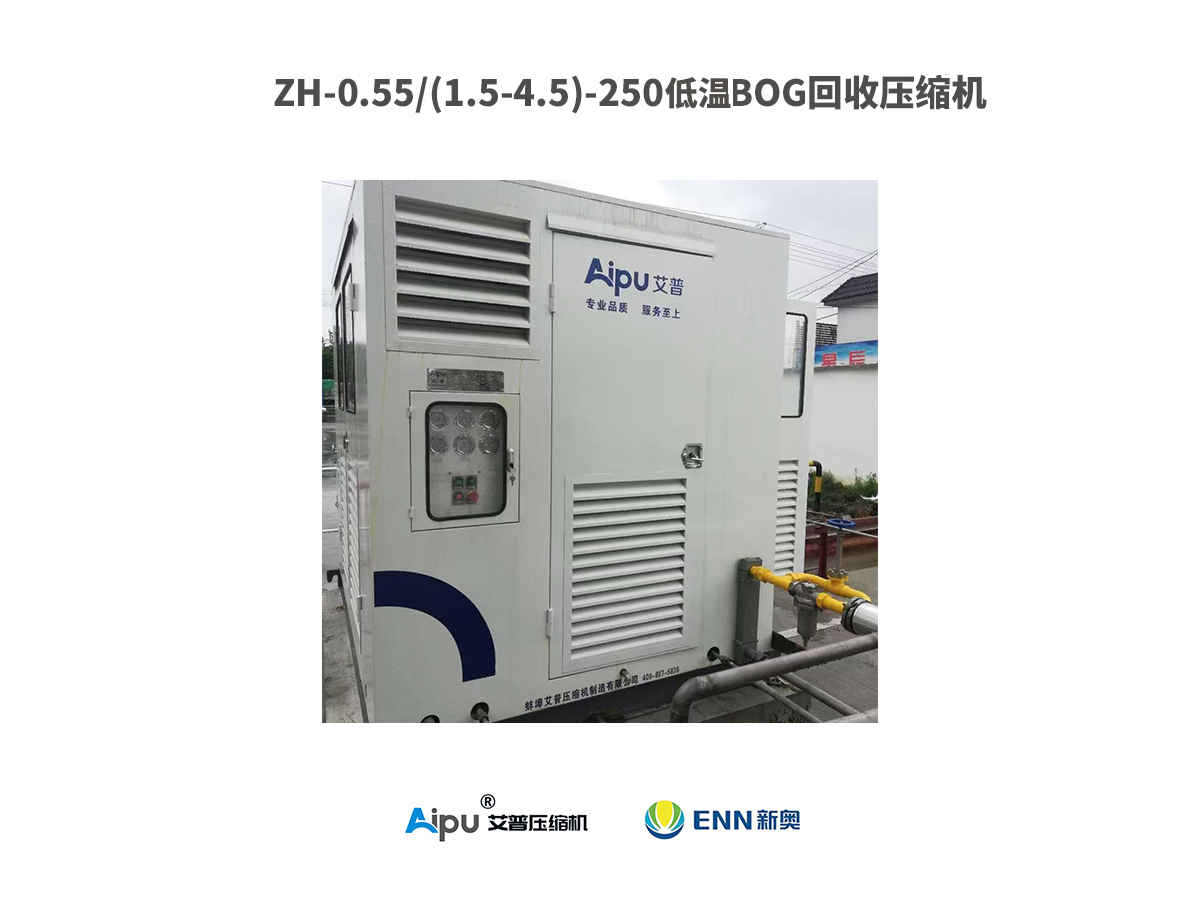

ZH-0.55/(1.5-4.5)-250 |
120 |
150 |
0.15-0.45 |
25 |
37 |
2200*2000*2000 |
|

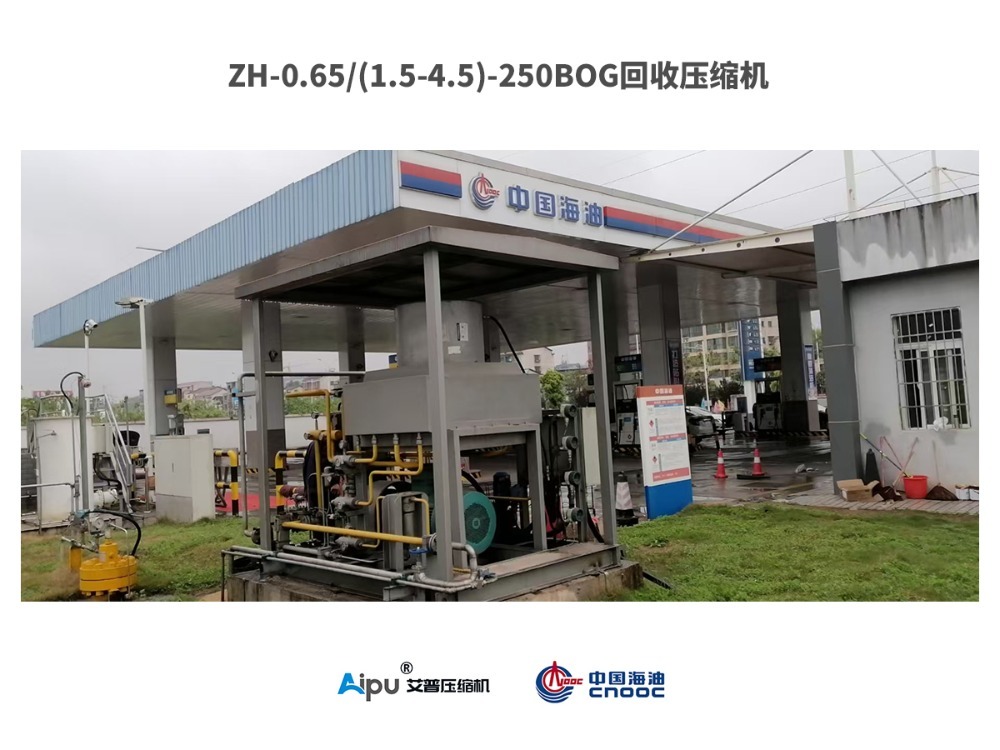

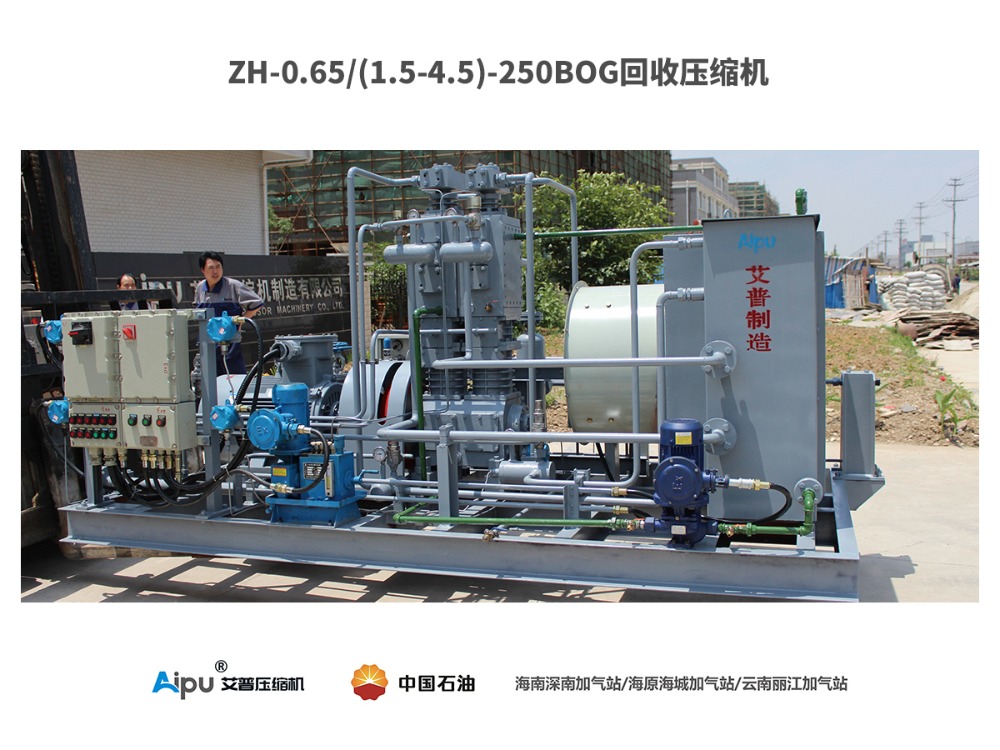

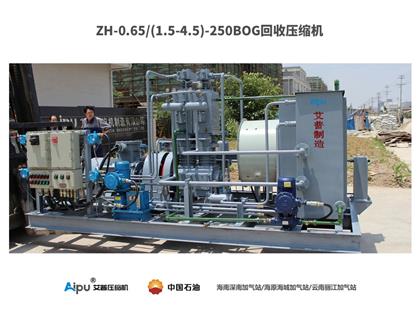

ZH-0.65/(1.5-4.5)-250 |
150 |
180 |
0.15-0.45 |
25 |
45 |
2200*2000*2000 |
|

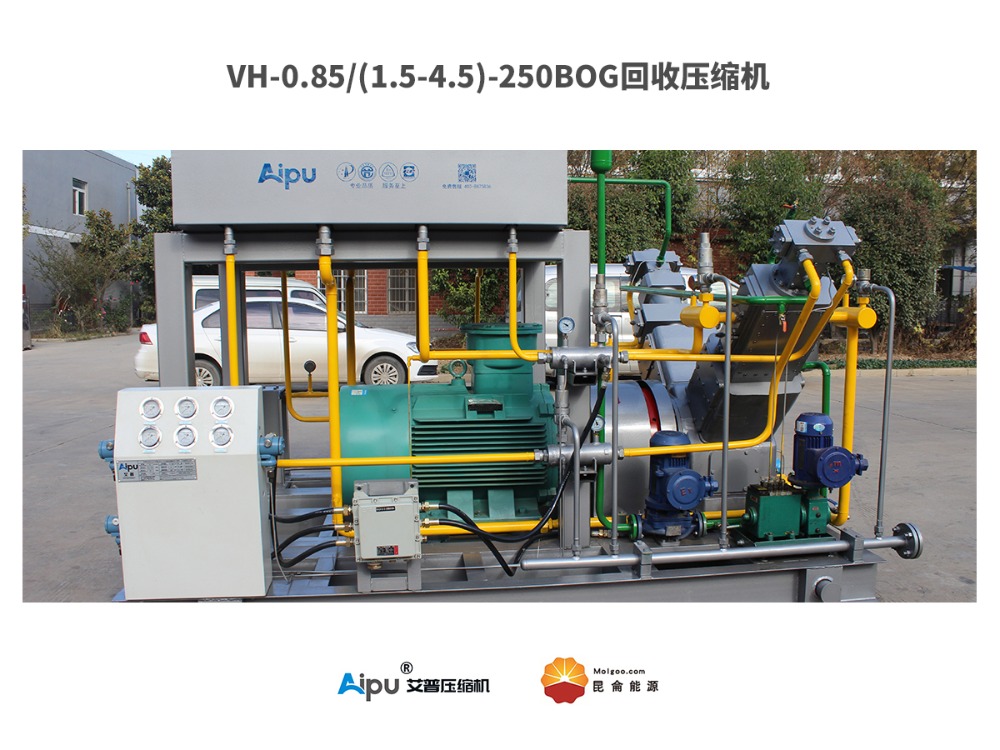

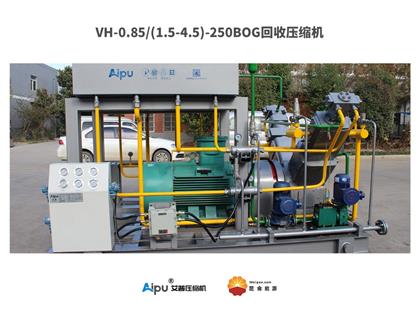

VH-0.85/(1.5-4.5)-250 |
200 |
230 |
0.15-0.45 |
25 |
75 |
3500*2700*3000 |
|
VH-1.60/(1.5-4.5)-250 |
300 |
350 |
0.15-0.45 |
25 |
90 |
3500*2700*3000 |
