Hydrogen compressor
■ Applicable Hydrogen series compressors are used for pressurized transmission of hydrogen in chemical process flows such as methanol to hydrogen, natural gas to hydrogen, coke oven gas to hydrogen, hydrofining and cracking.
■ Features Process-specific professional design
Safe and stable operation
|
Equipment Parameters
|
Medium
|
Treatment capacity
Nm3/h
|
Inlet pressure
（Mpa)
|
Exhaust pressure
（Mpa)
|
Motor power
KW
|
Overall dimensions
（mm)
|
|
ZW-0.65/8-30 |
Fresh hydrogen
|
300 |
0.8 |
3.0 |
30 |
2600*2000*1600 |
|
ZW-1.0/30-35 |
Recycle hydrogen
|
1600 |
3.0 |
3.5 |
30 |
2600*2000*1600 |
|
DW-12.6/7 |
Hydrogen
|
700 |
Atmospheric pressure
|
0.7 |
90 |
4500*2700*2600 |
|
DW-1.1/25-30 |
Recycle hydrogen
|
1500 |
2.5 |
3.0 |
30 |
3500*2000*2200 |
|
DW-7.3/40-45 |
Recycle hydrogen
|
15000 |
4.0 |
4.5 |
220 |
4500*2700*2600 |
|

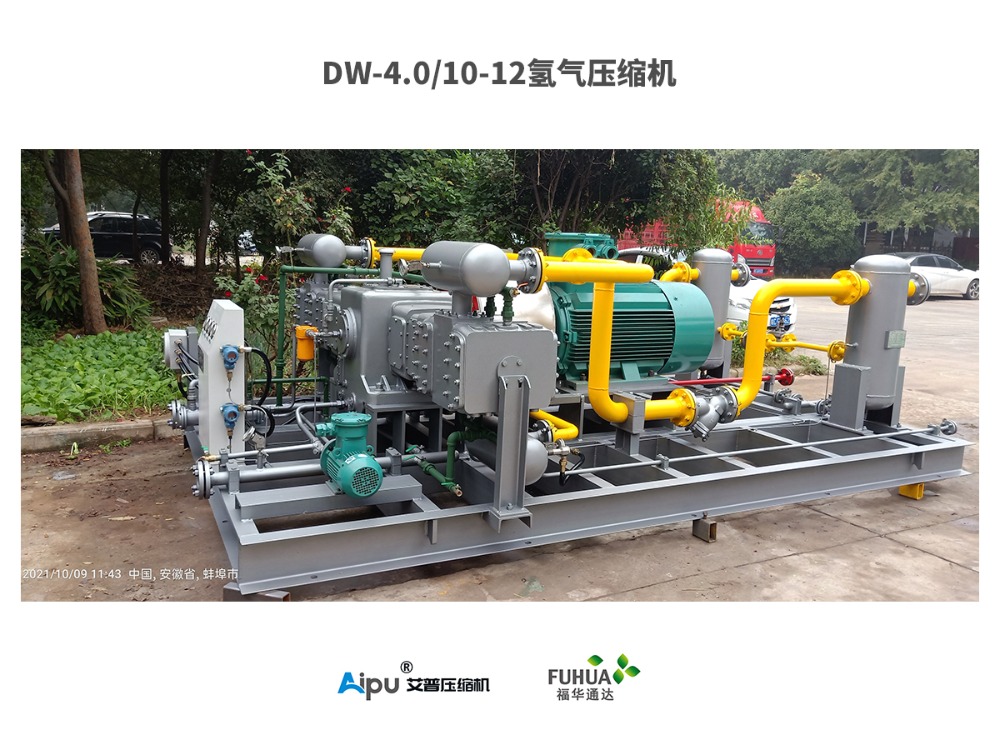

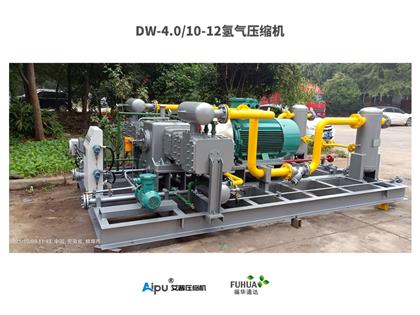

DW-4.0/10-12 |
Recycle hydrogen
|
350 |
0.1 |
1.2 |
55 |
3500*2000*2200 |
|
DW-2.5/0.7-20 |
Hydrogen
|
220 |
0.1 |
2.0 |
45 |
4500*2700*2600 |
|
DW-11/0.03-12 |
Raw hydrogen
|
600 |
0.0 |
0.2 |
45 |
3500*2000*2200 |
|
DW-0.33/8-130 |
Hydrogen
|
150 |
0.8 |
13.0 |
37 |
3500*2000*2200 |
|

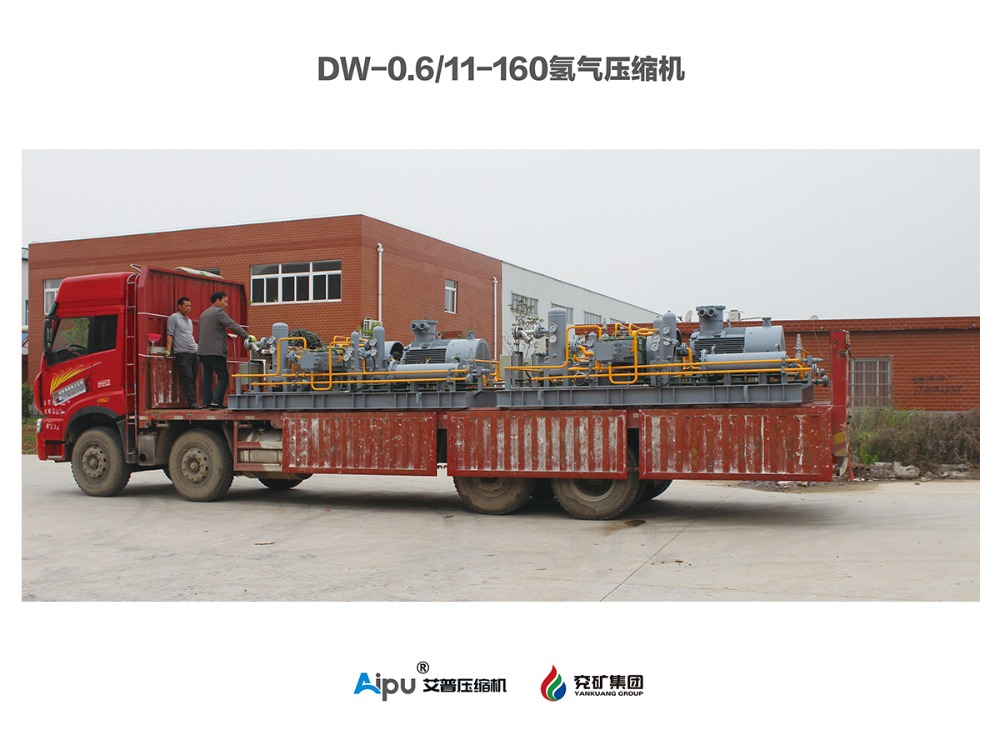

DW-0.6/11-160 |
Hydrogen
|
350 |
1.1 |
16.0 |
75 |
4500*2700*2600 |
|
DW-1.44/(5-9)-30 |
Fresh hydrogen
|
750 |
0.5-0.9 |
3.0 |
55 |
4500*2700*2600 |
|

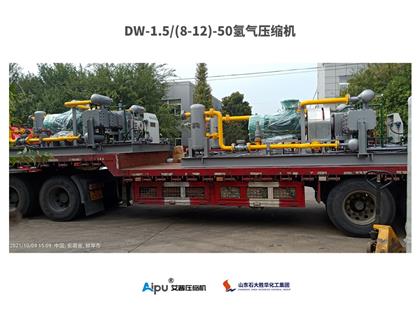

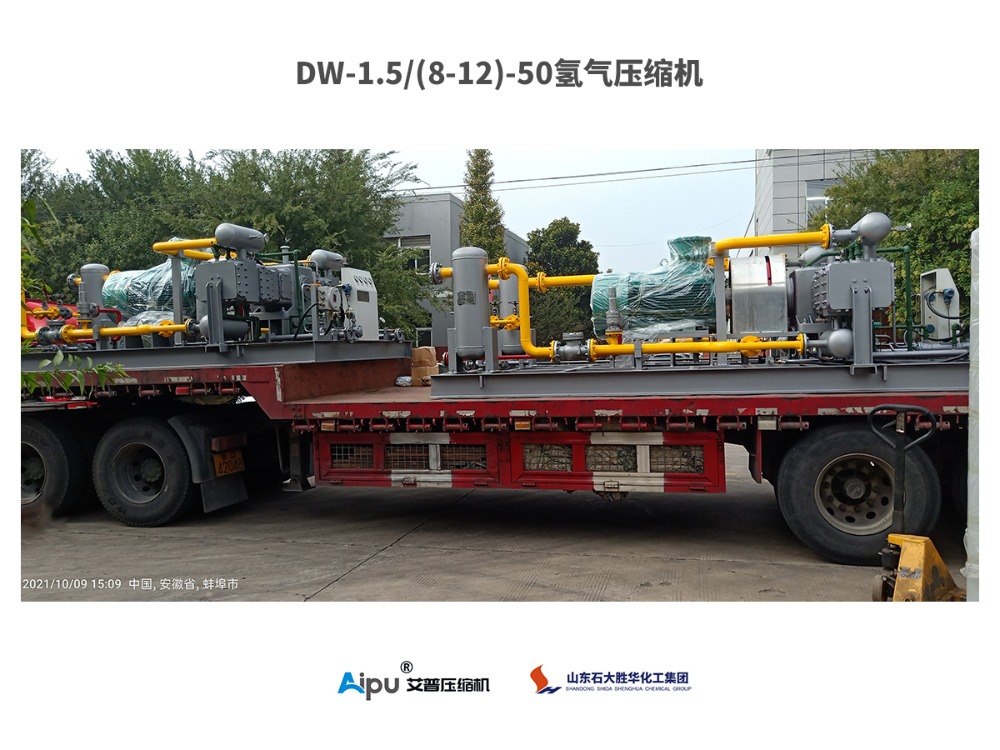

DW-1.5/(8-12）-50 |
Hydrogen
|
800 |
0.8-1.2 |
5.0 |
90 |
4500*2700*2600 |
